Alcatel ASM 120 h Helium Leak Detector | HVS Leak Detection

HVS

Helium Leak Detection

You are here: Home / Helium Leak Detectors / Alcatel Helium Leak Detectors / Alcatel ASM 120 h Helium Leak Detector

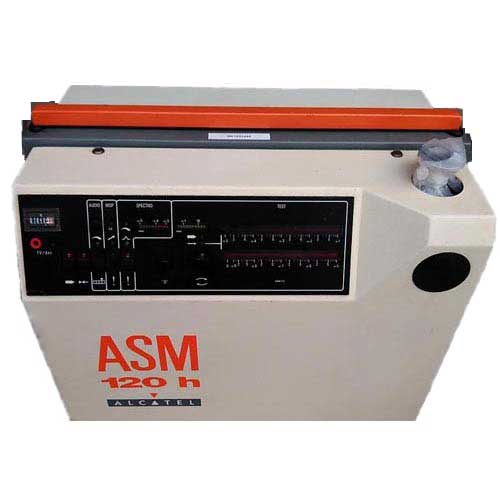

Alcatel ASM 120 h Helium Leak Detector

Alcatel ASM 120 h Helium Leak Detector

The Alcatel ASM 120 h  or Alcatel adixen ASM 120 helium leak detector is a compact portable leak detector unit.  It’s fully self contained.   This is a multipurpose portable leak detector with a sensitivity range of 10-9 mbar.

The Alcatel ASM 120 h  can be used to test small or large volume pieces under vacuum or it can be used in sniffing mode.

Alcatel ASM 120 h Helium Leak Detector Features

  • Complete portable leak station
  • Nine ranges available in the standard ASM 120h
  • Minimum detectable leak – High Sensitivity is  3 · 10-9
  • Vacuum test mode, Gross Leak mode and Sniffer mode
  • Easy to use and calibrate
  • Rugged stainless steel housing

Alcatel ASM 120 h Helium Leak Detector Applications

  • Maintenance of Vacuum Systems
  • Inspection/Quality Control for low volume production
  • Semiconductor leak testing
  • Power Generation leak testing
  • Coatings and Vacuum Coating leak testing
  • Research & Development
  • Petrochemical leak testing
  • Industrial Component Manufacturing
  • Electrical and Mechanical leak testing

Alcatel adixen ASM 120 Helium Leak Detector Specifications

Alcatel adixen Units ASM 12o h
Min detectable leak – high sensitivity mbar l/s ≤ 3 · 10-9
Sensitivity ranges mbar l/s 10-5 thru 10-9
Response time sec 1.5

How to Rent an Alcatel Helium Leak Detector
